Overview
The Evaluation kit incorporates 2 x LoRa Plus™ expansion boards, populated with Wio-LR2021 & Xiao nRF54L15 modules and accessories, configured for Europe EU868 and global 2.4GHz Industrial, Scientific and Medical (ISM) bands.
Features
Based on LR2021
- PCB Layers: 4
- 32MHz Reference Clock: XTAL
- Region: Europe
- Frequency Bands: Terrestrial and NTN, 868 MHz, 2.4 GHz ISM bands and licensed L/S-band radio
- Tx Out Power: 22 dBm to -10dBm (SubGHz) and 12dBm (2.4 GHz)
- RF Matching: Switchless Design

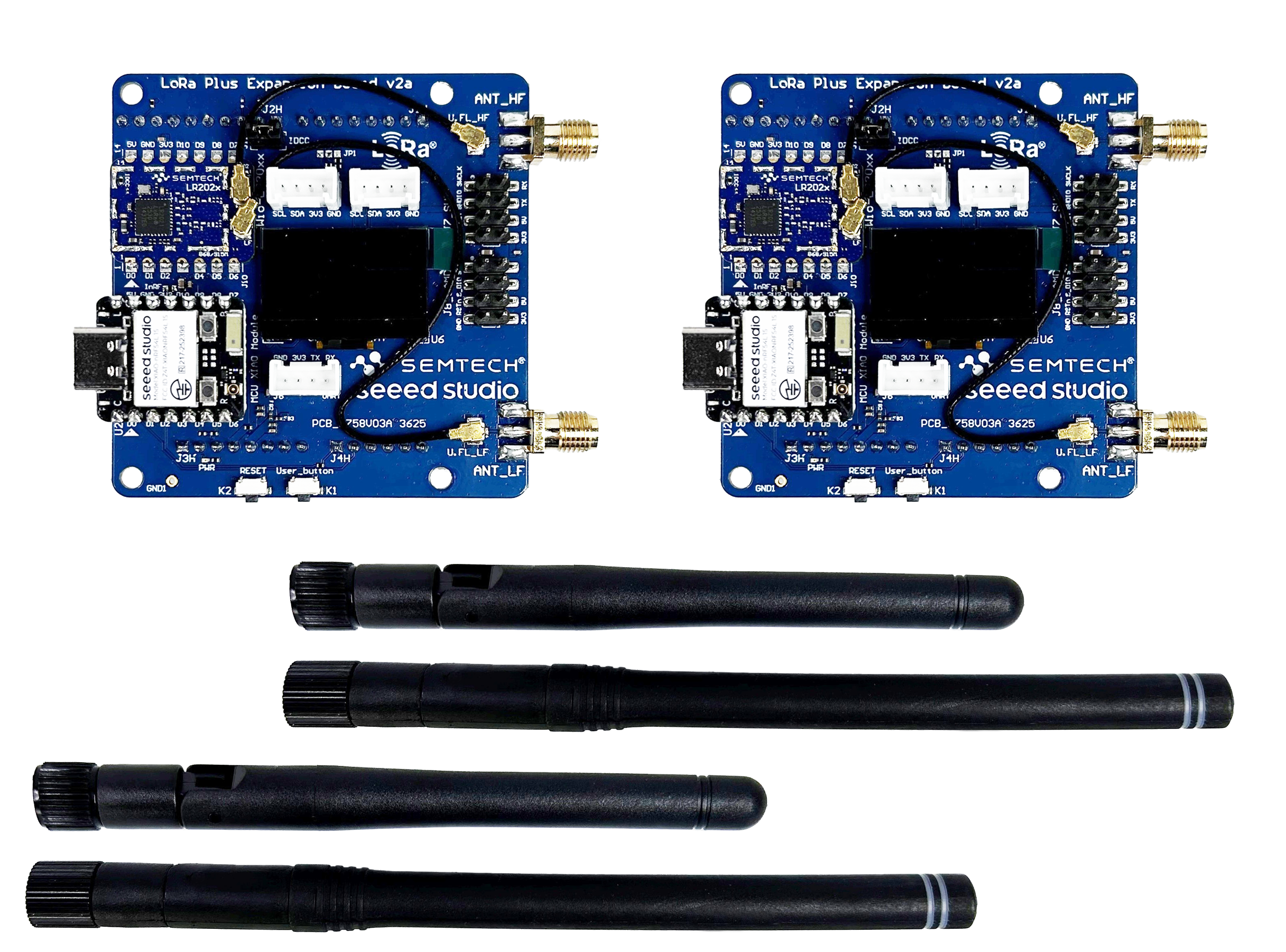

Evaluation Kit Content:
- 2x Wio-LR2021 modules (Wio-LR2021 PCB): Highly integrated LR2021 radio board
- 2x XIAO nRF54L15 modules (Xiao-NRF54 PCB): Nordic Semiconductor nRF54L15-based processing units
- 2x Expansion boards (Xiao-LR-Expansion PCB): Feature-rich carrier boards with display and connectivity
- 2x 2.4GHz antennas with SMA connection
- 2x 868 MHz antennas with SMA connection
- USB cables: For programming and power
- Documentation: Quick-start guide and assembly instructions
Packaging
- Kit
Order Codes
- LR2021EVK1XBS1: LR2021 LoRa Plus™ Evaluation Kit with 2 x Wio-LR2021 for Europe – 868 MHz / 2.4 GHz
PB Free/ROHS
Learn More →

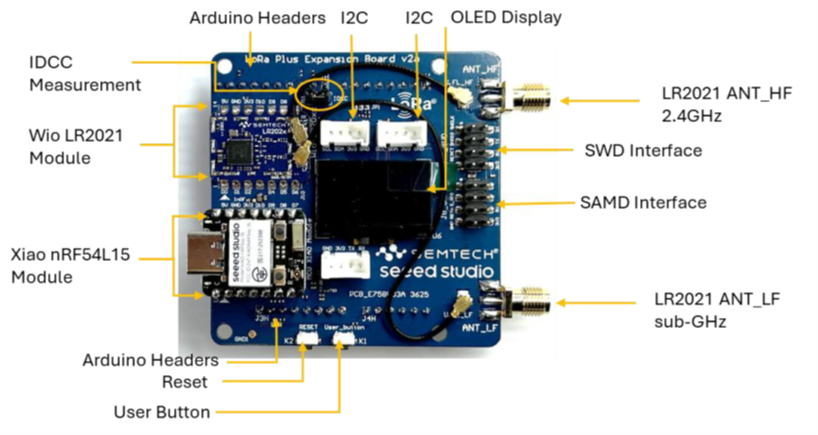

Click diagram to enlarge
